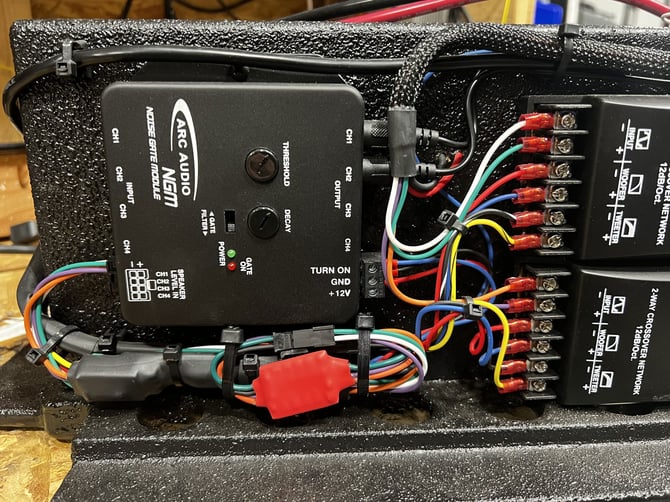

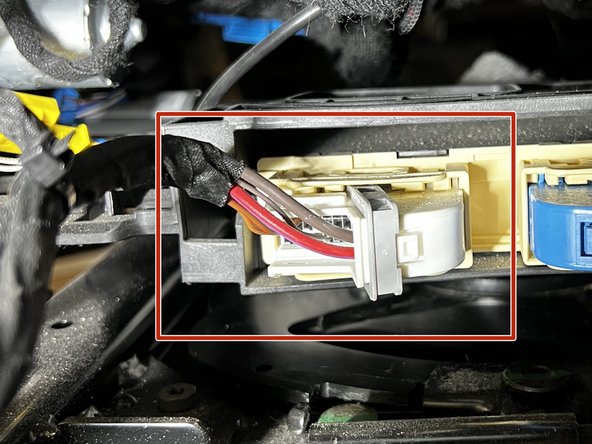

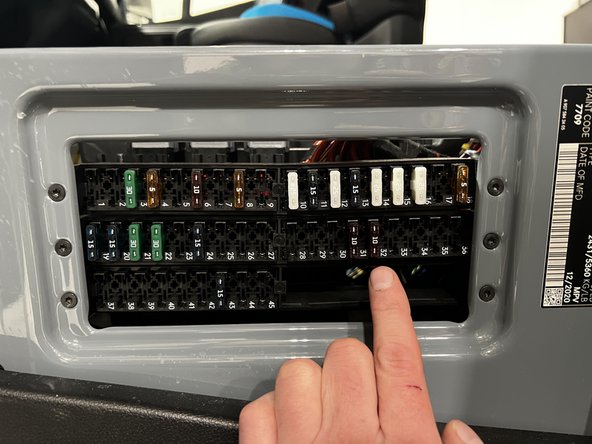

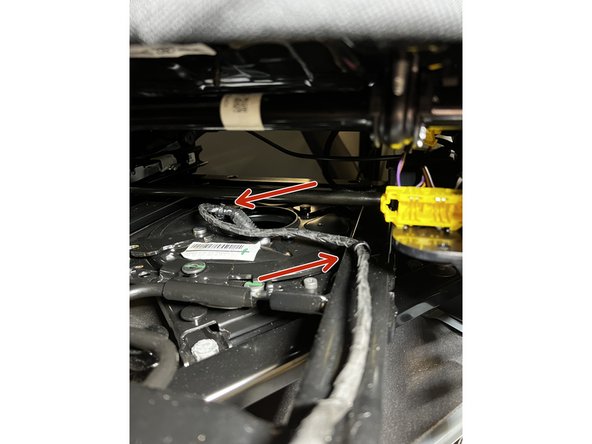

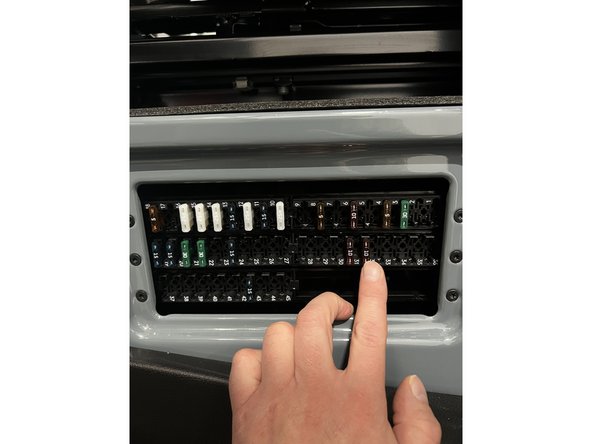

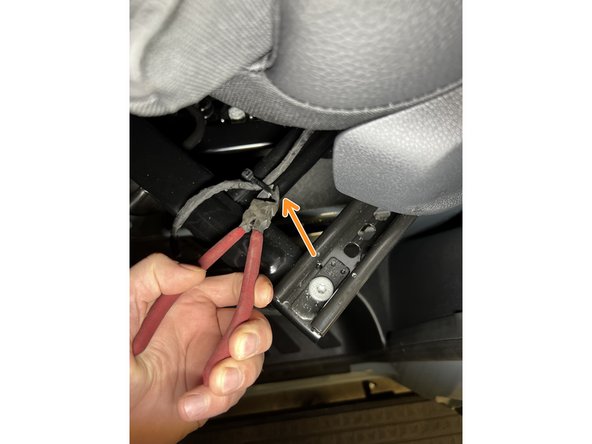

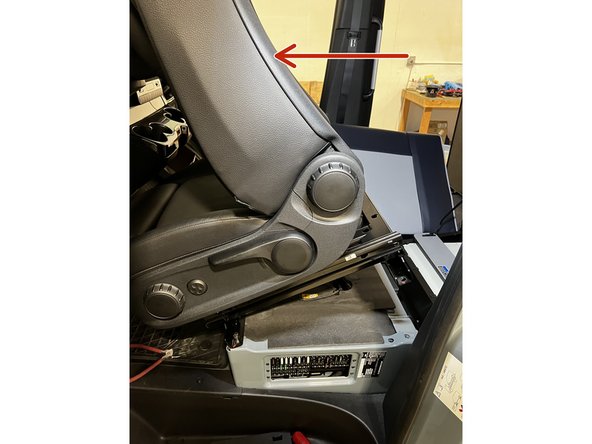

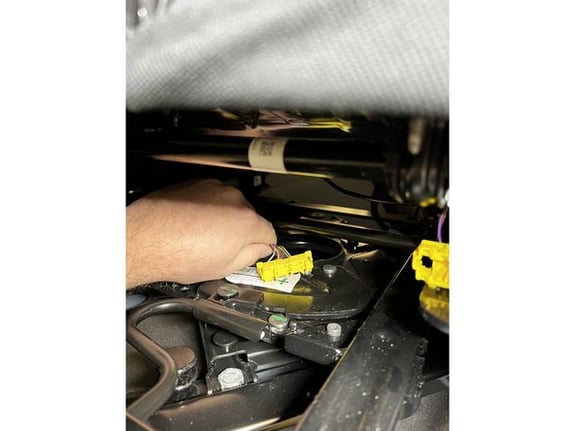

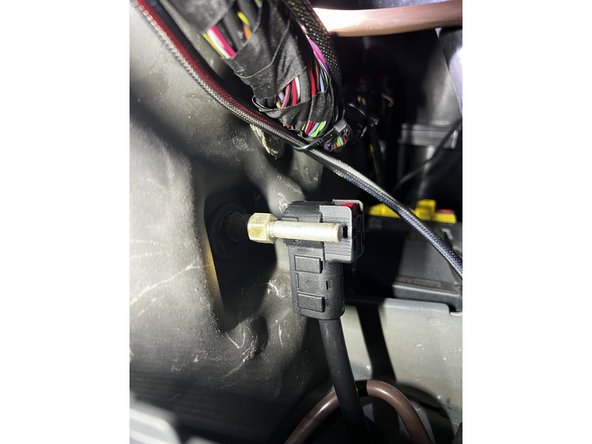

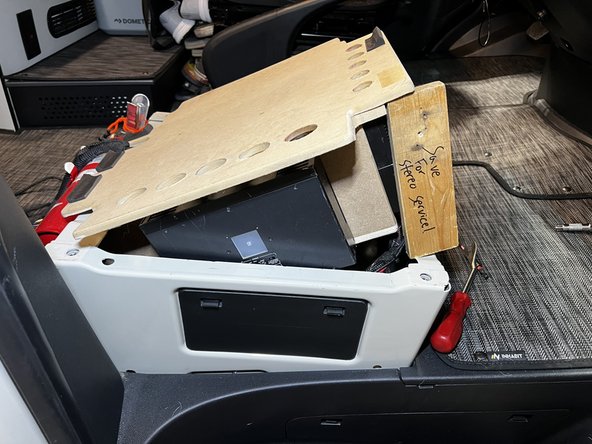

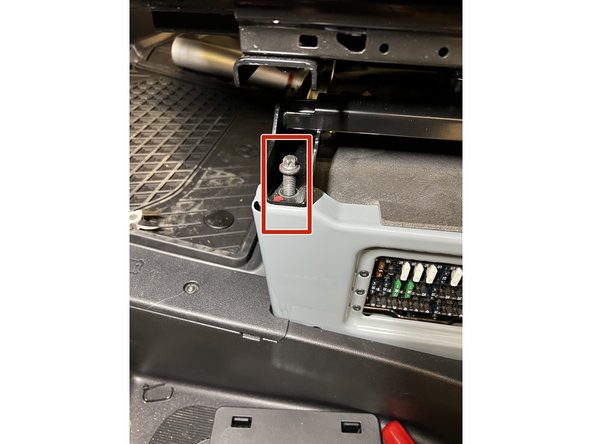

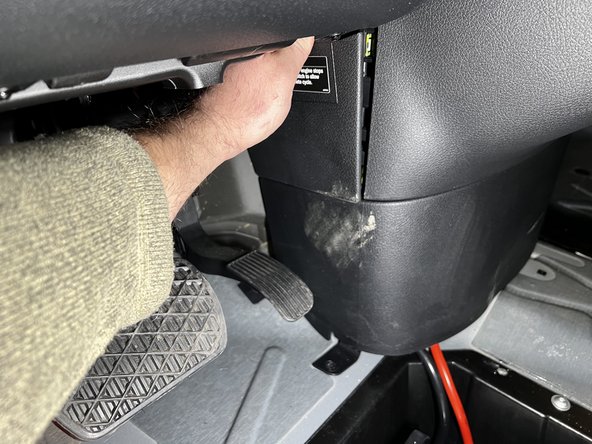

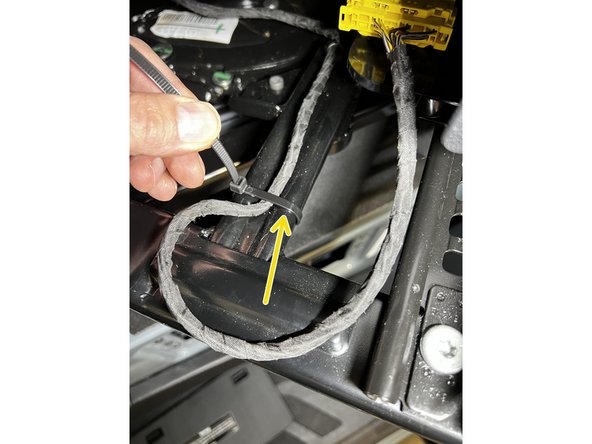

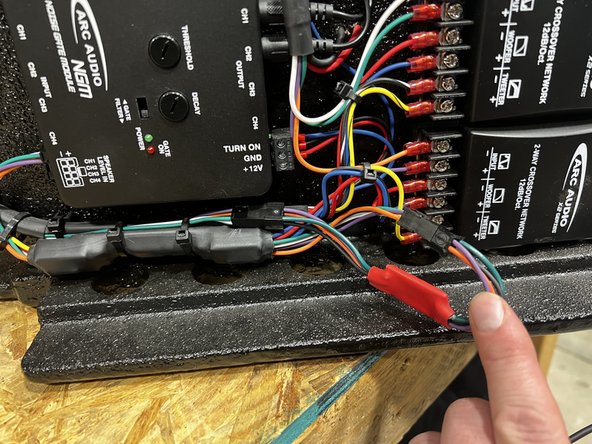

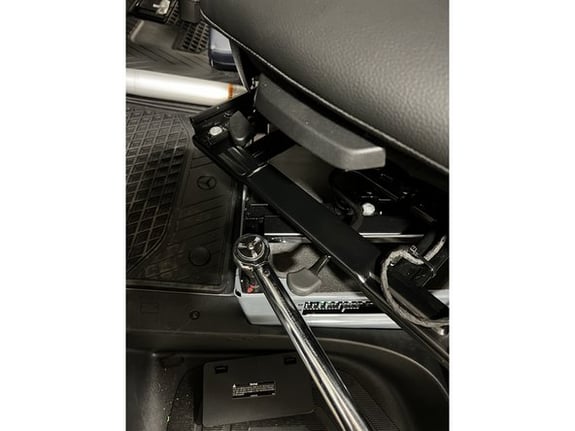

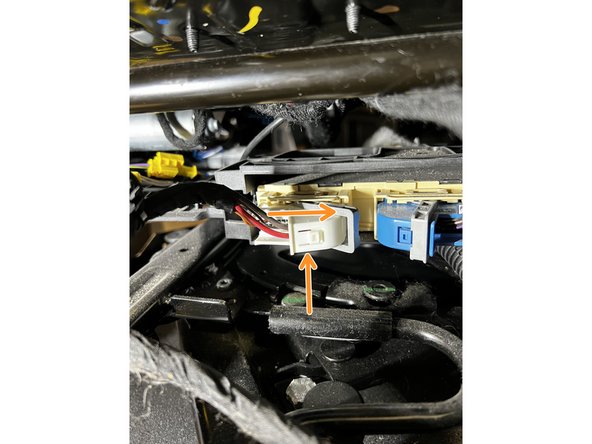

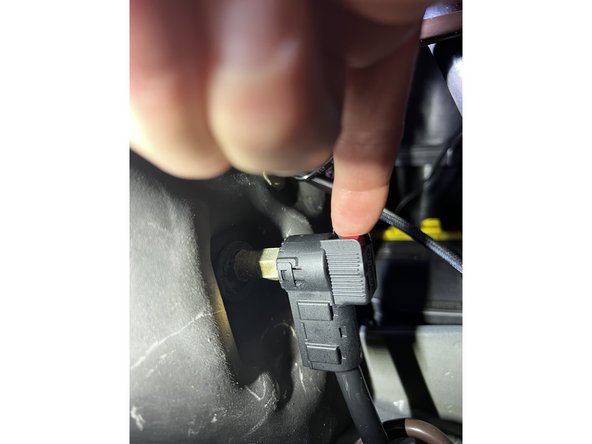

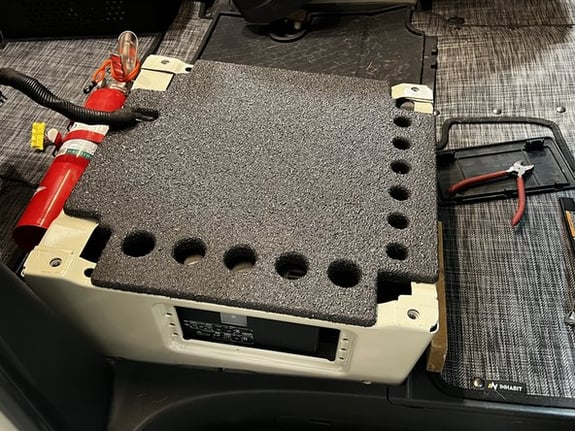

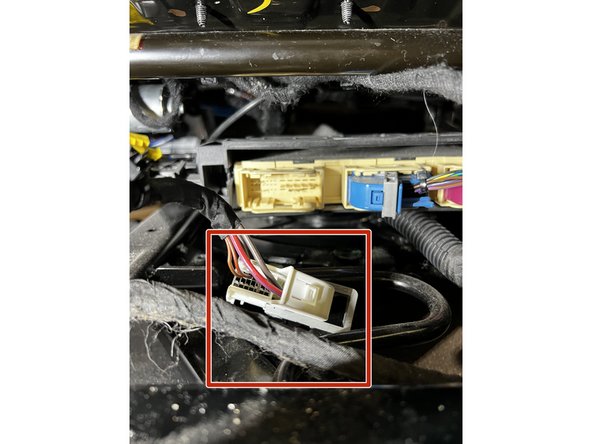

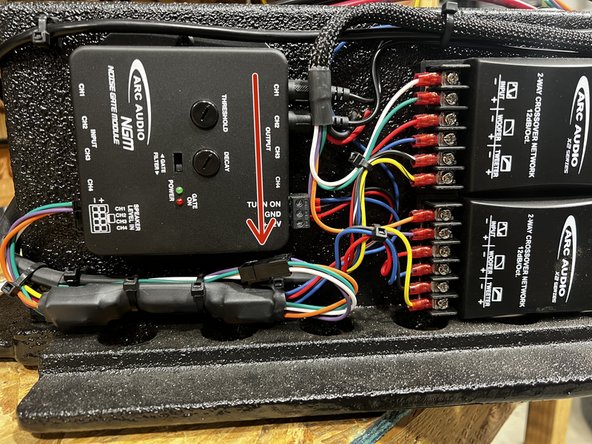

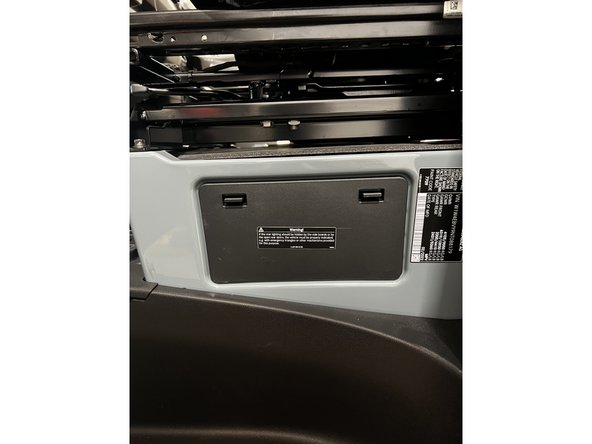

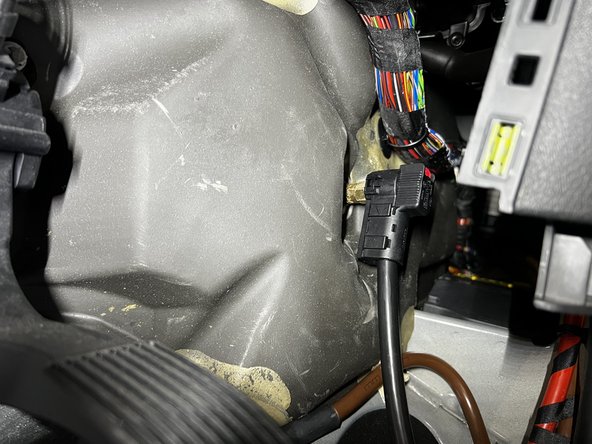

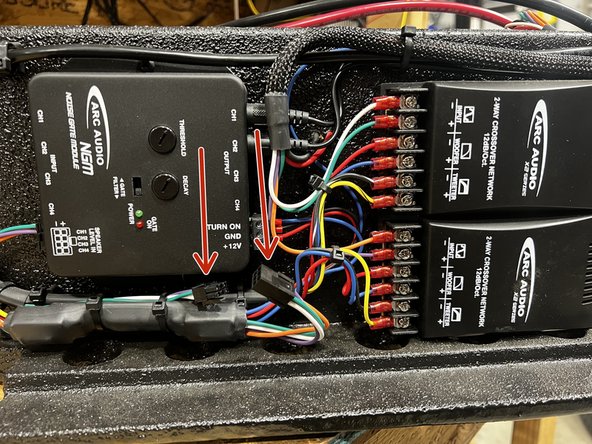

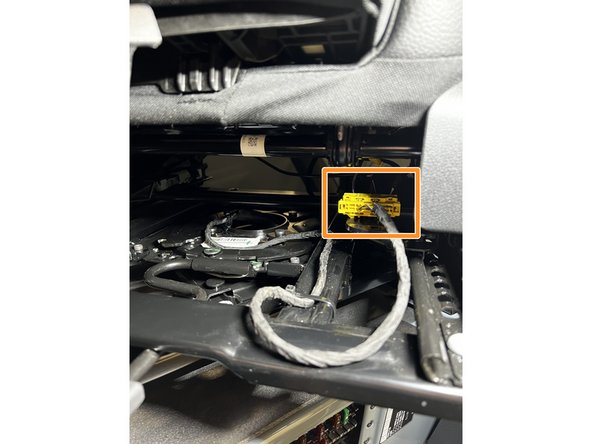

--- title: Beatbox Resistor Installation description: How to install the Resistor on 10" Beatboxes. --- [Skip to content](https://customers.roamrig.com/knowledge/beatbox-resistor-installation#main-content) English Show submenu for translations [![RoamRig Logo Main](https://customers.roamrig.com/hs-fs/hubfs/RoamRig%20Logo%20Main.png?width=150&height=86&name=RoamRig%20Logo%20Main.png)](http://www.roamrig.com/) - [Power Systems](https://customers.roamrig.com/knowledge/power-systems) Show submenu for Power Systems - [1st Gen Revels](https://customers.roamrig.com/knowledge/power-systems#start-here-1st-gen-revels) Show submenu for 1st Gen Revels - [RoamRig 101](https://customers.roamrig.com/knowledge/2018-20-roamrig-101) - [Using the Rixen Heater](https://customers.roamrig.com/knowledge/using-rixen-heater-with-roamrig-modifications) - [Storing Your Van](https://customers.roamrig.com/knowledge/system-storage-18-20-revels) - [Victron Battery Monitoring](https://customers.roamrig.com/knowledge/introduction-to-victron-battery-monitoring) - [Shore Charging](https://customers.roamrig.com/knowledge/how-to-use-shore-charging) - [Cold Weather Use](https://customers.roamrig.com/knowledge/cold-weather-use) - [Hot Weather Use](https://customers.roamrig.com/knowledge/hot-weather-use) - [2nd & 3rd Gen Revels](https://customers.roamrig.com/knowledge/power-systems#start-here-2nd-3rd-gen-revels) Show submenu for 2nd & 3rd Gen Revels - [RoamRig 101](https://customers.roamrig.com/knowledge/roamrig101-2g-3g) - [Storing Your Van](https://customers.roamrig.com/knowledge/system-storage-21-23-revels) - [Victron Battery Monitoring](https://customers.roamrig.com/knowledge/introduction-to-victron-battery-monitoring) - [Shore Charging](https://customers.roamrig.com/knowledge/how-to-use-shore-charging) - [Cold Weather Use](https://customers.roamrig.com/knowledge/cold-weather-use) - [Hot Weather Use](https://customers.roamrig.com/knowledge/hot-weather-use) - [Troubleshooting](https://customers.roamrig.com/knowledge/power-systems#something-isnt-working) Show submenu for Troubleshooting - [No Power](https://customers.roamrig.com/knowledge/no-power) - [Shore Power & Air Conditioning](https://customers.roamrig.com/knowledge/ac-or-shore-power-isnt-working) - [Solar Charging](https://customers.roamrig.com/knowledge/is-my-solar-working) - [What is beeping?](https://customers.roamrig.com/knowledge/something-is-beeping) - [Victron Connect Issues](https://customers.roamrig.com/knowledge/resetting-victron-password-or-trouble-connecting) - [All Power System Guides](https://customers.roamrig.com/knowledge/power-systems) - [Beatbox Blackbird](https://customers.roamrig.com/knowledge/beatbox-stereo) Show submenu for Beatbox Blackbird - [FAQ](https://customers.roamrig.com/knowledge/beatbox-installation) - [Compatibility & Fit](https://customers.roamrig.com/knowledge/beatbox-compatibility) - [Adding Speakers/Bluetooth](https://customers.roamrig.com/knowledge/beatbox-blackbird-upgrades) - [Installation Guide](https://customers.roamrig.com/knowledge/blackbird-installation) - [Using Your Beatbox](https://customers.roamrig.com/knowledge/beatbox-stereo-how-to) - [...more](https://customers.roamrig.com/knowledge/beatbox-stereo) - [Plumbing](https://customers.roamrig.com/knowledge/plumbing) Show submenu for Plumbing - [Plumbing 101](https://customers.roamrig.com/knowledge/roamrig-plumbing) - [Winterizing](https://customers.roamrig.com/knowledge/winterizing) - [Upgrade FAQ](https://customers.roamrig.com/knowledge/plumbing-installation-faqs) - [...more](https://customers.roamrig.com/knowledge/plumbing-upgrades) - [Shop](https://shop.roamrig.com/collections/all-products) Open main navigation Close main navigation - [Power Systems](https://customers.roamrig.com/knowledge/power-systems) Show submenu for Power Systems - [1st Gen Revels](https://customers.roamrig.com/knowledge/power-systems#start-here-1st-gen-revels) Show submenu for 1st Gen Revels - [RoamRig 101](https://customers.roamrig.com/knowledge/2018-20-roamrig-101) - [Using the Rixen Heater](https://customers.roamrig.com/knowledge/using-rixen-heater-with-roamrig-modifications) - [Storing Your Van](https://customers.roamrig.com/knowledge/system-storage-18-20-revels) - [Victron Battery Monitoring](https://customers.roamrig.com/knowledge/introduction-to-victron-battery-monitoring) - [Shore Charging](https://customers.roamrig.com/knowledge/how-to-use-shore-charging) - [Cold Weather Use](https://customers.roamrig.com/knowledge/cold-weather-use) - [Hot Weather Use](https://customers.roamrig.com/knowledge/hot-weather-use) - [2nd & 3rd Gen Revels](https://customers.roamrig.com/knowledge/power-systems#start-here-2nd-3rd-gen-revels) Show submenu for 2nd & 3rd Gen Revels - [RoamRig 101](https://customers.roamrig.com/knowledge/roamrig101-2g-3g) - [Storing Your Van](https://customers.roamrig.com/knowledge/system-storage-21-23-revels) - [Victron Battery Monitoring](https://customers.roamrig.com/knowledge/introduction-to-victron-battery-monitoring) - [Shore Charging](https://customers.roamrig.com/knowledge/how-to-use-shore-charging) - [Cold Weather Use](https://customers.roamrig.com/knowledge/cold-weather-use) - [Hot Weather Use](https://customers.roamrig.com/knowledge/hot-weather-use) - [Troubleshooting](https://customers.roamrig.com/knowledge/power-systems#something-isnt-working) Show submenu for Troubleshooting - [No Power](https://customers.roamrig.com/knowledge/no-power) - [Shore Power & Air Conditioning](https://customers.roamrig.com/knowledge/ac-or-shore-power-isnt-working) - [Solar Charging](https://customers.roamrig.com/knowledge/is-my-solar-working) - [What is beeping?](https://customers.roamrig.com/knowledge/something-is-beeping) - [Victron Connect Issues](https://customers.roamrig.com/knowledge/resetting-victron-password-or-trouble-connecting) - [All Power System Guides](https://customers.roamrig.com/knowledge/power-systems) - [Beatbox Blackbird](https://customers.roamrig.com/knowledge/beatbox-stereo) Show submenu for Beatbox Blackbird - [FAQ](https://customers.roamrig.com/knowledge/beatbox-installation) - [Compatibility & Fit](https://customers.roamrig.com/knowledge/beatbox-compatibility) - [Adding Speakers/Bluetooth](https://customers.roamrig.com/knowledge/beatbox-blackbird-upgrades) - [Installation Guide](https://customers.roamrig.com/knowledge/blackbird-installation) - [Using Your Beatbox](https://customers.roamrig.com/knowledge/beatbox-stereo-how-to) - [...more](https://customers.roamrig.com/knowledge/beatbox-stereo) - [Plumbing](https://customers.roamrig.com/knowledge/plumbing) Show submenu for Plumbing - [Plumbing 101](https://customers.roamrig.com/knowledge/roamrig-plumbing) - [Winterizing](https://customers.roamrig.com/knowledge/winterizing) - [Upgrade FAQ](https://customers.roamrig.com/knowledge/plumbing-installation-faqs) - [...more](https://customers.roamrig.com/knowledge/plumbing-upgrades) - [Shop](https://shop.roamrig.com/collections/all-products) - English Show submenu for translations - [Contact us](https://shop.roamrig.com/pages/support) [Contact us](https://shop.roamrig.com/pages/support) How can we help? - There are no suggestions because the search field is empty. 1. [RoamRig Knowledge Base](https://customers.roamrig.com/knowledge?hsLang=en) 2. [Installation Docs](https://customers.roamrig.com/knowledge/installation-docs?hsLang=en) 3. [Beatbox Install Guides](https://customers.roamrig.com/knowledge/installation-docs?hsLang=en#beatbox-install-guides) # Beatbox Resistor Installation ## How to install the Resistor on 10" Beatboxes. This update is only necessary if advised by RoamRig support. ![Beatbox-Resistor](https://customers.roamrig.com/hs-fs/hubfs/Beatbox-Resistor.jpg?width=670&height=503&name=Beatbox-Resistor.jpg) | #### **Difficulty** Easy | #### **Time Needed** 45 minutes | | --- | --- | | #### **Required Tools** - E12 External Torx Socket - Socket Wrench 3/8" Drive | - Wire Cutters - 3/8" Drive Extension - 3" - Torque Wrench 3/8" Drive | --- ### **Step 1:** VS30 Battery and Power Disconnect 1. Remove battery ground disconnect access cover to expose battery ground disconnect. ![](https://customers.roamrig.com/hs-fs/hubfs/Rich%20Text%20Pasting/google-1746809380134.jpeg?width=592&height=444&name=google-1746809380134.jpeg) 2. Depress the red tab on the battery ground disconnect, and pull to remove from ground stud ![](https://customers.roamrig.com/hs-fs/hubfs/Rich%20Text%20Pasting/google-1746809403078.jpeg?width=592&height=444&name=google-1746809403078.jpeg) ![](https://customers.roamrig.com/hs-fs/hubfs/Rich%20Text%20Pasting/google-1746809403078-1.jpeg?width=592&height=444&name=google-1746809403078-1.jpeg) 3. Remove the fuse panel cover from the driver side seat base to expose fuse panel. ![](https://customers.roamrig.com/hs-fs/hubfs/Rich%20Text%20Pasting/google-1746809411116.jpeg?width=592&height=444&name=google-1746809411116.jpeg) 4. Locate and remove fuse #32. ![](https://customers.roamrig.com/hs-fs/hubfs/Rich%20Text%20Pasting/google-1746809417962.jpeg?width=592&height=444&name=google-1746809417962.jpeg) --- ### **Step 2:** Seat Removal 1. Disconnect the yellow plug for the seat wire harness by depressing the tabs on each side, and pulling connector out. The tabs are depressed inwards, towards the center of the plug. ![](https://customers.roamrig.com/hs-fs/hubfs/Rich%20Text%20Pasting/google-1746809429248.jpeg?width=592&height=444&name=google-1746809429248.jpeg) 2. Remove seat wire harness from seat rails by unclipping securement clips along the seat rails. ***If equipped with power seats, you will need to adjust the seats to allow them to swivel PRIOR to disconnecting the battery.*** ![](https://customers.roamrig.com/hs-fs/hubfs/Rich%20Text%20Pasting/google-1746809446953-1.jpeg?width=592&height=444&name=google-1746809446953-1.jpeg) ![](https://customers.roamrig.com/hs-fs/hubfs/Rich%20Text%20Pasting/google-1746809446953.jpeg?width=592&height=444&name=google-1746809446953.jpeg) 3. If your van does not have power seats, skip to Step 6. 4. Located the harness for power seats on the module under the seat. ![](https://customers.roamrig.com/hs-fs/hubfs/Rich%20Text%20Pasting/google-1746809461741.jpeg?width=592&height=444&name=google-1746809461741.jpeg) 5. To disconnect the plug, depress the locking tab, and move the locking lever to the right to release the plug from the module. ![](https://customers.roamrig.com/hs-fs/hubfs/Rich%20Text%20Pasting/google-1746809476782-1.jpeg?width=592&height=444&name=google-1746809476782-1.jpeg) ![](https://customers.roamrig.com/hs-fs/hubfs/Rich%20Text%20Pasting/google-1746809476782.jpeg?width=592&height=444&name=google-1746809476782.jpeg) 6. Route seat wire harness and the power seat harness (if equipped) through the opening in the seat swivel. ![](https://customers.roamrig.com/hs-fs/hubfs/Rich%20Text%20Pasting/google-1746809484164.jpeg?width=575&height=432&name=google-1746809484164.jpeg) 7. Using the E12 Torx socket and socket wrench, begin removing the 4 seat bolts that secure the seat to the seat base. It will be necessary to rotate the seat to access all the seat bolts. ![](https://customers.roamrig.com/hs-fs/hubfs/Rich%20Text%20Pasting/google-1746809490829.jpeg?width=592&height=444&name=google-1746809490829.jpeg) 8. After the 4 seat bolts have been removed, the seat can be lifted out of the vehicle. Adjust the seat back to the upright most position to make the seat easier to remove from the van. Take care to not scratch the door panel or the B pillar on the van when removing the seat. Masking tape can be used on the seat base to help prevent damage. --- ### **Step 3: Accessing Beatbox** 1. We will need to access the front of the Beatbox to install the resistor pack. ***If you have a fire extinguisher or any other accessory secured to the back of the seat base via screws, you may need to remove the screws if they are long and protrude into the sub box!*** 2. Lift up and support the front of the Beatbox, and support the front using a suitable chock. We are using a small piece of wood in the image placed against the seat base and under the front lip of the Beatbox. *Take care when lifting the front of the Beatbox, as we do not want to damage the Beatbox.* ![](https://customers.roamrig.com/hs-fs/hubfs/Rich%20Text%20Pasting/google-1746809520861.jpeg?width=592&height=444&name=google-1746809520861.jpeg) 3. You can also remove the Beatbox from the vehicle and set it on a table or bench. You would need to disconnect the power wires from the amplifier, and disconnect all the harness' as well to remove. --- ### **Step 4:** Resistor Pack Install 1. This is shown on a work bench for clarity purposes. The Beatbox shown in the images is a prototype, so some wire routing MAY be slightly different on your unit, but the procedure is exactly the same. 2. Located the 6 pin connector below the NGM and next to the crossovers. The wire colors are Purple, Green, Orange, and White. The connector may be positioned behind the relay module (the long skinny module secured below the NGM). ![](https://customers.roamrig.com/hs-fs/hubfs/Rich%20Text%20Pasting/google-1746809622092.jpeg?width=592&height=444&name=google-1746809622092.jpeg) 3. Depress the locking tab and pull this connector apart. ![](https://customers.roamrig.com/hs-fs/hubfs/Rich%20Text%20Pasting/google-1746809633424.jpeg?width=592&height=444&name=google-1746809633424.jpeg) 4. The resistor pack has a 6 pin connector on each end, a male and female end. 5. Plug each side of the resistor pack into the corresponding (male or female) connector on the harness we just disconnected on the Beatbox. The resistor pack can only be plugged in one way. ![](https://customers.roamrig.com/hs-fs/hubfs/Rich%20Text%20Pasting/google-1746809640691.jpeg?width=592&height=444&name=google-1746809640691.jpeg) 6. Use the provided zip ties to secure the resistor pack to the existing harness as shown. Avoid placing the zip ties directly over the body of the resistor pack. If the zip ties are over-tightened you can damage the resistor board. Cut the tails off the zip ties. ![](https://customers.roamrig.com/hs-fs/hubfs/Rich%20Text%20Pasting/google-1746809647845.jpeg?width=575&height=432&name=google-1746809647845.jpeg) 7. With all the wiring secured and connected, remove the prop and lower the Beatbox into position in the seat base. **Ensure the seat wiring harness is not being crimped or crushed by the box. ![](https://customers.roamrig.com/hs-fs/hubfs/Rich%20Text%20Pasting/google-1746809654407.jpeg?width=575&height=432&name=google-1746809654407.jpeg)** --- ### **Step 5:** Reinstall Seats 1. Lift the seat into the van, and place it on the seat base. Take care not to scratch the seat base when placing the seat into the van. Masking tape can be used on the seat base to help avoid damage. 2. Start the front 2 seat bolts into the base by hand, only a few turns. ![](https://customers.roamrig.com/hs-fs/hubfs/Rich%20Text%20Pasting/google-1746809661075.jpeg?width=592&height=444&name=google-1746809661075.jpeg) 3. With the front 2 bolts started, tilt the seat forward. ![](https://customers.roamrig.com/hs-fs/hubfs/Rich%20Text%20Pasting/google-1746809667027.jpeg?width=592&height=444&name=google-1746809667027.jpeg) 4. Feed the seat wiring harness through the center hole up through the seat swivel. ![](https://customers.roamrig.com/hs-fs/hubfs/Rich%20Text%20Pasting/google-1746809672088.jpeg?width=592&height=444&name=google-1746809672088.jpeg) 5. Lower the seat back onto the base, and start the rear 2 seat bolts by hand. **Start the seat bolts by hand to avoid cross threading the bolt into the nut on the seat base.** Seat will need to be swiveled to access all the seat bolts. 6. With all the seat bolts started, tighten all the bolts and torque to 29 ft/lbs. ![](https://customers.roamrig.com/hs-fs/hubfs/Rich%20Text%20Pasting/google-1746809678260.jpeg?width=575&height=432&name=google-1746809678260.jpeg) 7. If your van does not have power seats, skip to Step 10. 8. Route the power seat harness to the control module under the seat, along with the seat wire harness. ![](https://customers.roamrig.com/hs-fs/hubfs/Rich%20Text%20Pasting/google-1746809684245.jpeg?width=592&height=444&name=google-1746809684245.jpeg) 9. Insert the plug into the module. As the plug is inserted, the locking lever will start to close. Once the plug is fully seated, the lever can be moved into the locked position. ![](https://customers.roamrig.com/hs-fs/hubfs/Rich%20Text%20Pasting/google-1746809689895.jpeg?width=592&height=444&name=google-1746809689895.jpeg) 10. Route seat wire harness along seat rails, securing to the seat rail. ![](https://customers.roamrig.com/hs-fs/hubfs/Rich%20Text%20Pasting/google-1746809695334.jpeg?width=592&height=444&name=google-1746809695334.jpeg) 11. Connect the plug from the seat wire harness into the connector on the seat. ![](https://customers.roamrig.com/hs-fs/hubfs/Rich%20Text%20Pasting/google-1746809700777.jpeg?width=592&height=444&name=google-1746809700777.jpeg) 12. Secure the excess wire to the seat rail using a zip tie and trim zip tie tail. ***Ensure there is enough slack in the wire harness to allow the seat to slide forward and backwards, as well as rotate.*** ![](https://customers.roamrig.com/hs-fs/hubfs/Rich%20Text%20Pasting/google-1746809707461.jpeg?width=592&height=444&name=google-1746809707461.jpeg) --- ### **Step 6: Reconnect Power** 1. Place the battery disconnect terminal back onto the ground stud. Push the battery disconnect terminal onto the stud until it clicks. Give the terminal a tug to ensure it is fully seated. ![](https://customers.roamrig.com/hs-fs/hubfs/Rich%20Text%20Pasting/google-1746809753471.jpeg?width=592&height=444&name=google-1746809753471.jpeg) 2. Reinstall the battery disconnect access cover. ![](https://customers.roamrig.com/hs-fs/hubfs/Rich%20Text%20Pasting/google-1746809759203.jpeg?width=592&height=444&name=google-1746809759203.jpeg) 3. Reinstall fuse #32. ![](https://customers.roamrig.com/hs-fs/hubfs/Rich%20Text%20Pasting/google-1746809764570.jpeg?width=592&height=444&name=google-1746809764570.jpeg) - [Power Systems](https://customers.roamrig.com/knowledge/power-systems?hsLang=en#main-content) - [Start Here - 1st Gen Revels](https://customers.roamrig.com/knowledge/power-systems?hsLang=en#start-here-1st-gen-revels) - [Start Here - 2nd/3rd Gen Revels](https://customers.roamrig.com/knowledge/power-systems?hsLang=en#start-here-2nd-3rd-gen-revels) - [Everyday Operation and Maintenance (for all systems)](https://customers.roamrig.com/knowledge/power-systems?hsLang=en#everyday-operation-and-maintenance-for-all-systems) - [Battery Monitoring (Victron & Lithionics)](https://customers.roamrig.com/knowledge/power-systems?hsLang=en#battery-monitoring-victron-lithionics) - [Inverter/Charger Operation](https://customers.roamrig.com/knowledge/power-systems?hsLang=en#inverter-charger-operation) - [Something isn't working!](https://customers.roamrig.com/knowledge/power-systems?hsLang=en#something-isnt-working) - [Video Tutorials](https://customers.roamrig.com/knowledge/power-systems?hsLang=en#video-tutorials) - [Beatbox Stereo](https://customers.roamrig.com/knowledge/beatbox-stereo?hsLang=en) - [Plumbing](https://customers.roamrig.com/knowledge/plumbing?hsLang=en) - [Visiting RoamRig](https://customers.roamrig.com/knowledge/visiting-roamrig?hsLang=en) - [Installation Docs](https://customers.roamrig.com/knowledge/installation-docs?hsLang=en#main-content) - [Revel Upgrade Guides](https://customers.roamrig.com/knowledge/installation-docs?hsLang=en#revel-upgrade-guides) - [Beatbox Install Guides](https://customers.roamrig.com/knowledge/installation-docs?hsLang=en#beatbox-install-guides) - [Component Installation Guides](https://customers.roamrig.com/knowledge/installation-docs?hsLang=en#component-installation-guides) [![blank image](https://customers.roamrig.com/hs-fs/hubfs/blank%20image.png?width=10&height=8&name=blank%20image.png "blank image")](https://shop.roamrig.com/) RoamRig © 2026
